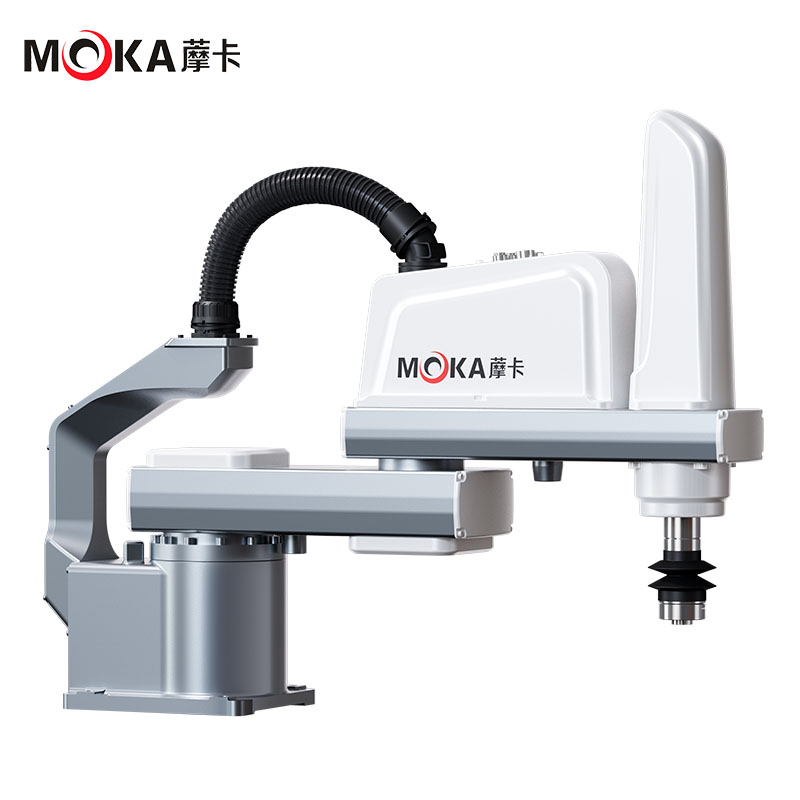

MB10SC-500

  • High Speed continuous and stable operations for improved productivity;
  • High Precision: accurate motion control for less human errors and rapid handling and gripping by the robot;
  • High Flexibility. rapid adaptation with flexibility to new tasks and products for a shorter delivery period.
  • Digitization: a digital control system achieves accurate machining process control;
  • Expert Database: an expert database built in the system to achieve intelligent automation of parameter combinations;
  • User-friendliness: a simple control system interface ensures easy operations.

Main standard specifications

Model
MB10SC-500
Number of axis
4-axis
Motion radius
500mm
Max payload
Rated 5KG/Max 10KG
Mounting position
Floor
Power capacity
2.0KVA
Repeatability
±0.02mm
Input/Output signals
Standard 16 in/16 out 24 VDC
Robot mass
24KG
Built-in air tube
Φ6
Motion parameters:
axis
 Moving range Maximum speed
1 axis S ±135° J1+J2 7380mm/s
2 axis L ±145° J1+J2 7380mm/s
3 axis U 200mm 1100mm/s
4 axis R ±360° 880°/s
Disclaimer: This data is as comprehensive and detailed as possible on the basis of existing information, but the company reserves the right to modify parameters and other information without further notice!

Control Cabinet

Model:
MRC-A100
Control Axes
4/6-axis
Install
Vertical installation/horizontal installation
Memory Capacity
JOB: 200000 steps,10000 robot commands (total 200M)
Operation Mode
Teaching/replay/remote
Power OnAnd Off IntervalTime
10S
Standard I/O
Universal digital IO: standard 16 input and 16 NPN input (expandable)
Display
1*VGA:max resolution up  2560 X1600@60Hz
Expansion Slot
16 input/16 expansion 10 module
2 high-speed encoder signal interface (for tracking)
1*RS232/422/485

3*RJ45Inteli211ATGbE (10/100/1000Mbps)
Support CAN, ModbusTCP, CC-Link, TCPIP,etc.
Input Voltage Range
Rated 1PH 220VAC 50/60HZ (the input voltage is within + 7% of the rated voltage)
Protection Class
IP54
EMC Test Environment
Support IEC61000-6-2
Installation Environment
Temperature:0~55°C,Humidity:10~80%RH(no condensing),Below 1000M
Dimensions(WDH)
350(width)*368(depth)*204(height)mm (with protrusions)
Supported Models (Standard Configuration)
MB04S/MB04SC/MB10S/MB10SC

Disclaimer: This data is as comprehensive and detailed as possible on the basis of existing information, but the company reserves the right to modify parameters and other information without further notice!

Specification of teaching programmer

Dimensions
280(W)*220(D)*120(H) mm(with protrusions)
Gross weight
0.6KG
Material
Reinforced plastic
Display
8-inch colorLCD.Touch screen 640×480 pixels
Protection class
IP54
Cable length
Standard:5m.Optional:up to 15m.
Operation buttons
Selection button, axis operation button, numerical value/application button, mode switch with key/(teaching mode,playback mode, remote mode),emergency stop button,enable button,1USB port

Disclaimer: This data is as comprehensive and detailed as possible on the basis of existing information, but the company reserves the right to modify parameters and other information without further notice!
